PVC Artifical Marble Sheet UV Board Extrusion Machine PVC Board Making Machine

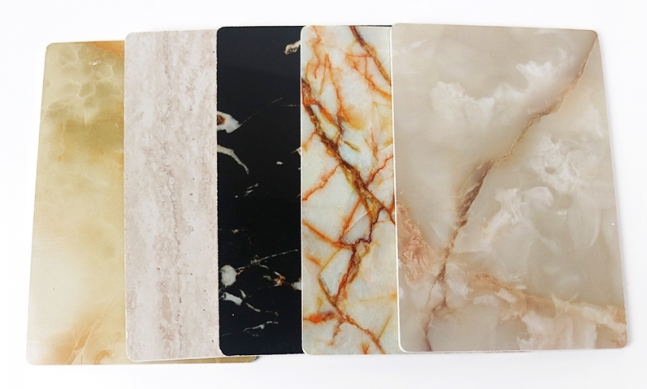

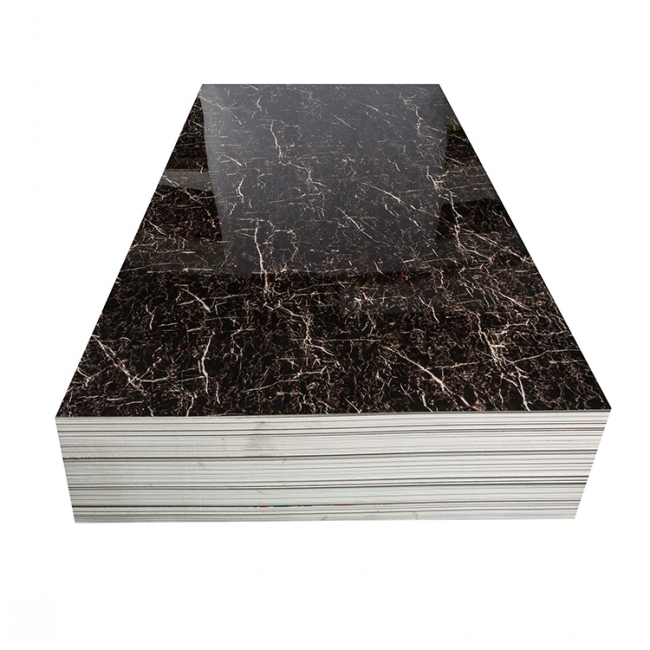

PVC Artifical Marble Sheet UV Board Extrusion Machine PVC Board Making Machineis used to make PVC marble sheet which have marble, carpet, stones, natural scenery, stereo design on the surface. And the board is popular in the hospital, school, office buildings, shopping malls,supermarkets, transportation and other public places.
Processing flow production line

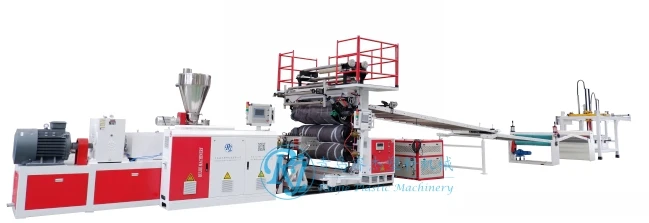

500/1000 Mixer→Auto loader→SJSZ80/156 or SJSZ92/188 conical twin screw extruder →Mould→ Three calender(online laminating) →Edge cutter→Hual off machine→ Transversal cutter → Conveyor→UV treatment →Final PVC marble sheet
Configuration
|
PVC raw materials Loading and Mixing system
|
|
1. Auto Loader
|
1 set
|
|
2. High speed Mixer unit
|
1 set
|
|
PVC marble sheet Extrusion Line
|
|
1. Spring Loader or Spiral Loader
|
1 set
|
|

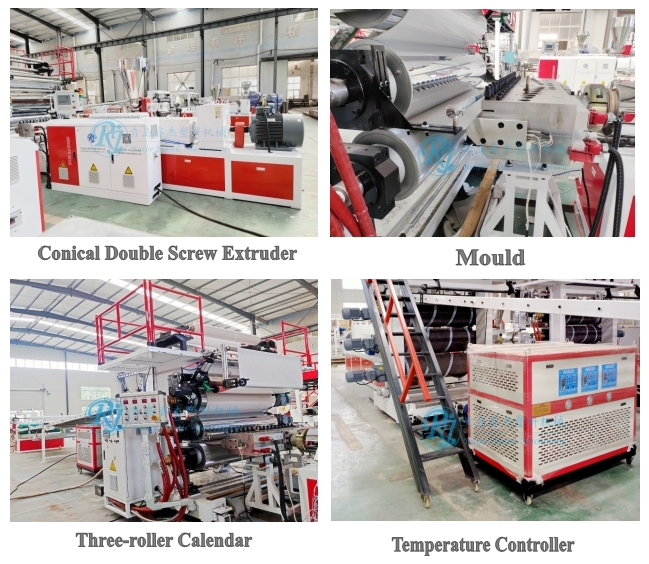

2. SJZ80/156 or 92/188 Conical double screw Extruder
|
1 set
|
|
3. Mold/Die head Set
|
1 set
|
|
4. Three-roller Calander with Marble film unit
|
1 set
|
|
5. Temperature controller of three rollers
|
1 set
|
|

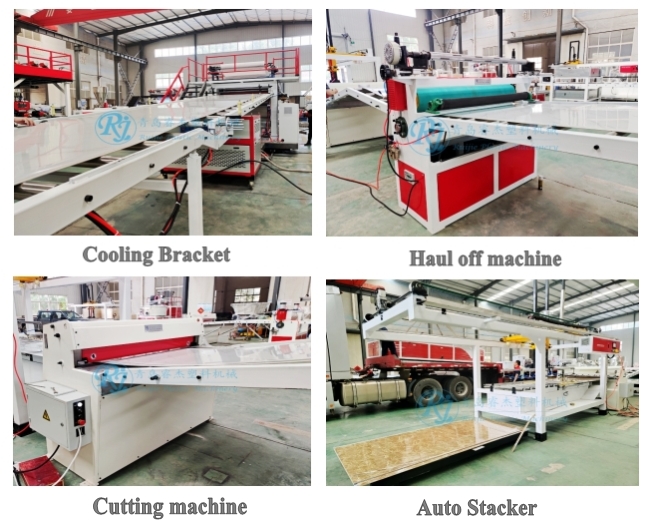

6. Cooling frame with side cutting
|
1 set
|
|
7. Haul off unit
|
1 set
|
|
8. Cutting unit
|
1 set
|
|
9. Auto-stacker
|
1 set
|
|
Sheet/Plate Recycling machines
|
|
1. Sheet Crusher/Grinder
|
1 set
|
|
2. PVC Pulverizer/Miller
|
1 set
|
Product Features
(1) Green environmental protection: No formaldehyde, non-toxic harmless, non radioactive pollution, no pollution to the
environment, belong to the green environmental protection products, can be recycled.
(2) Low price: PVC(foamed)marble imitation profile is much cheaper, the price is only 10~20% of the normal marble product.
(3) Featured product: Can be customized, offering the PVC foamed profiles and high-calcium profiles.
(4) Rich and well-balanced color: As a result of the product surface hot stamping or water transfer printing technology, the
product is in rich color and no color difference of the same batch.
(5) Safe and convenient in construction: The material is light, easy to construct, can be sawed and shaved. Easy to ship and install. No need to maintain.
Sheet Application
This kind of PVC artificial marble stone sheet/profile production line is mainly used to produce the skirting panel profile for ceiling,wall panel, background wall, window frame, door frame, skirting board, elevator door frame, etc., special for public and private decoration, such as villa, house, hotel, shopping mall, and so on.
